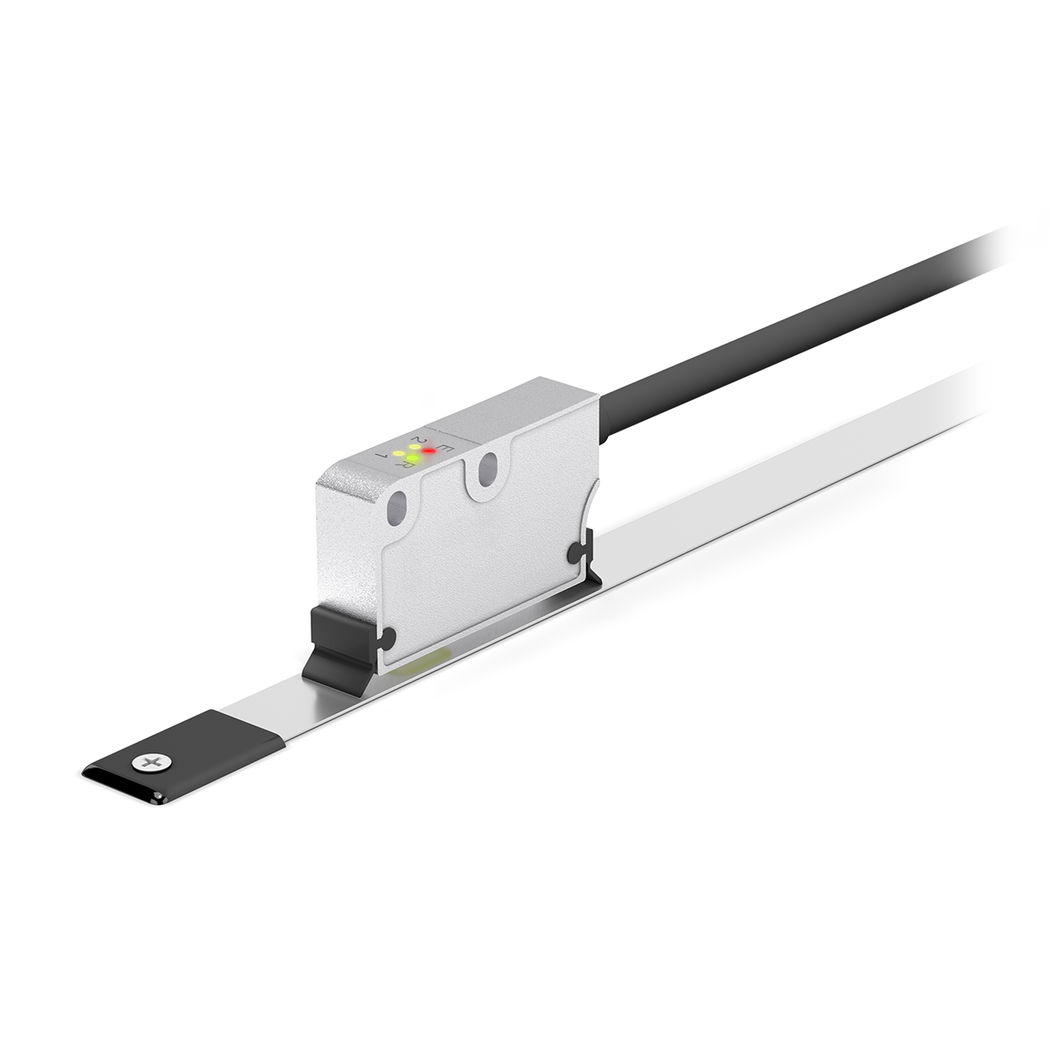

Standard sensor for linear and rotary axis SME51

Standard sensor for linear and rotary axis SME51 Introducing the Encoder Lika -a reliable measuring device in the field of automated production line machinery. With high quality, stable performance, and flexibility, it meets all the precise requirements of machine technology.

+ Standard sensor for linear and rotary axis
+ Gap clearance up to 2 mm
+ Lika Hi-flex sensor cable
+ Status LED for clearance error
+ Optional reference mark LKM1309/5 to be installed along the magnetic tape
+ Optional tape cleaning wipers

Examples of Motion Feedback in Aerospace
The aerospace industry typically uses encoders to provide feedback for the following functions:
+ Motor Feedback-Actuators, ground support vehicles, antenna positioning systems
+ Conveying-Baggage handling systems
+ Registration Mark Timing-Antenna positioning, airborne guidance systems
+ Backstop Gauging-Automated assembly systems
+ X-Y Positioning-Automated assembly systems

Examples of Motion feedback functions in autonomous motion applications:
+ Lift control
+ Drive motor
+ Steering assembly
+ Redundancy

Examples of Ball Screw Positioning
+ Machine tool placement
+ Industrial lifting jack
+ Printer carriage positioning

Please contact the LIKA Vietnam team at [ sales.encoders@lika-vietnam.com ] for specific consultation regarding the Standard sensor for linear and rotary axis SME51

TECHNICAL DETAILS

+ Output/Interface Push-Pull; Line Driver

+ Encoder version Contactless

+ Resolution 80 nm max.

+ Application General industry

+ Product status Active

DOWNLOAD

Click here to download the Data sheet C58pdf (0 downloads )
